Wireless Video Link System
Connex Max
A high-end, long-range wireless video link for heavy-duty UAV, UGV, and industrial equipment.
A high-end, long-range wireless video link for heavy-duty UAV, UGV, and industrial equipment.

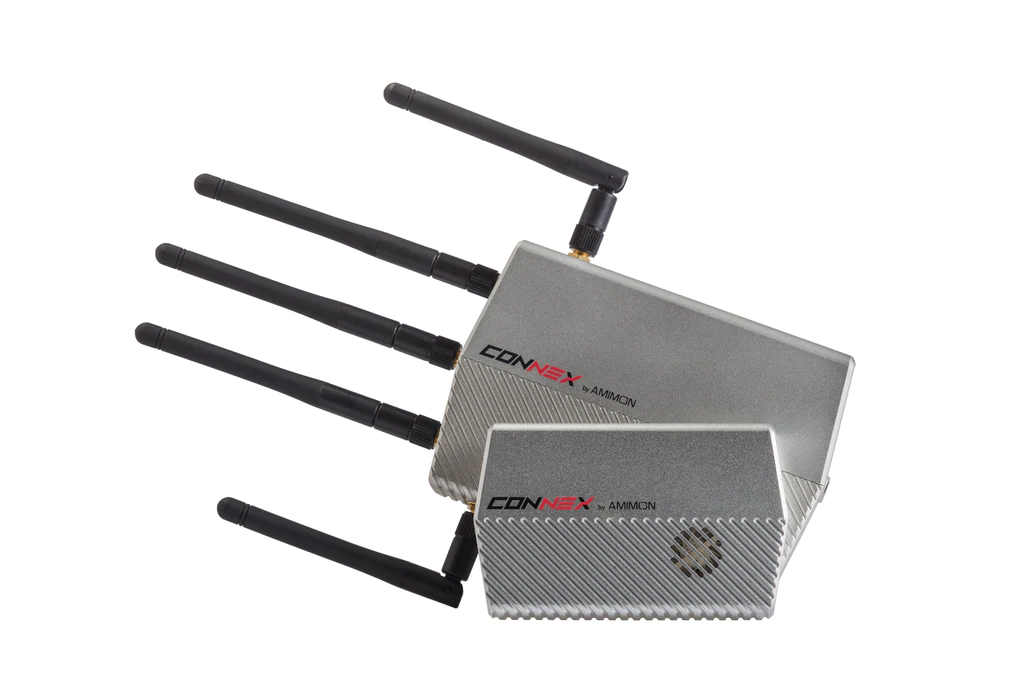

The Connex Max Video Link system supports up to 1080p60 video resolution with zero-latency performance and a line-of-sight range of up to 3,300 ft. Connex Max is a high-end wireless video system ideal for heavy-duty UAV, UGV, and industrial equipment requiring remote HDMI video vision. The package includes a transmitter and receiver unit, each of which can also be purchased as a standalone to build a custom application.
HDMI-in to HDMI-out latency of just 1 millisecond.
5GHz band (5.1-5.8GHz) using a 20/40MHz channel for extended-range transmission.
Full HD video resolution at up to 60fps.
Built for demanding UAV, UGV, and industrial equipment applications.
RSA-1024 key exchange with AES-128 encryption secures every transmitted frame.
Mini HDMI (Type C) input, HDMI (Type A) output, CANbus/Mavlink OSD input, and S.BUS gimbal control.
Key performance parameters for system integration and evaluation.
| Parameter | Value |
|---|---|
| Latency | Zero-latency (HDMI in to HDMI out: 1 mS) |
| Line of Sight Range | Up to 3,300 ft |
| Frequency Band | 5GHz (5.1-5.8GHz), 20/40MHz channel |
| Video Resolution | Up to 1080p60 |
| Multicast | Up to 4 receivers paired with a single transmitter |
| Encryption | AES-128, RSA-1024 key exchange |
| Video Interface | Mini HDMI (Type C) input & HDMI (Type A) output |
| OSD Input (to transmitter) | CANbus / Mavlink |
| Gimbal Control | S.BUS (input to receiver, output from transmitter) |
This Connex system is deployed across Rocoto’s industrial installations - crane cabins, manufacturing floors, and remote UAV/UGV operations. See the full Industrial Solutions overview.
Our engineering team is available to support your integration, answer technical questions, and provide evaluation units.
