Wireless In-Light Camera
SL11

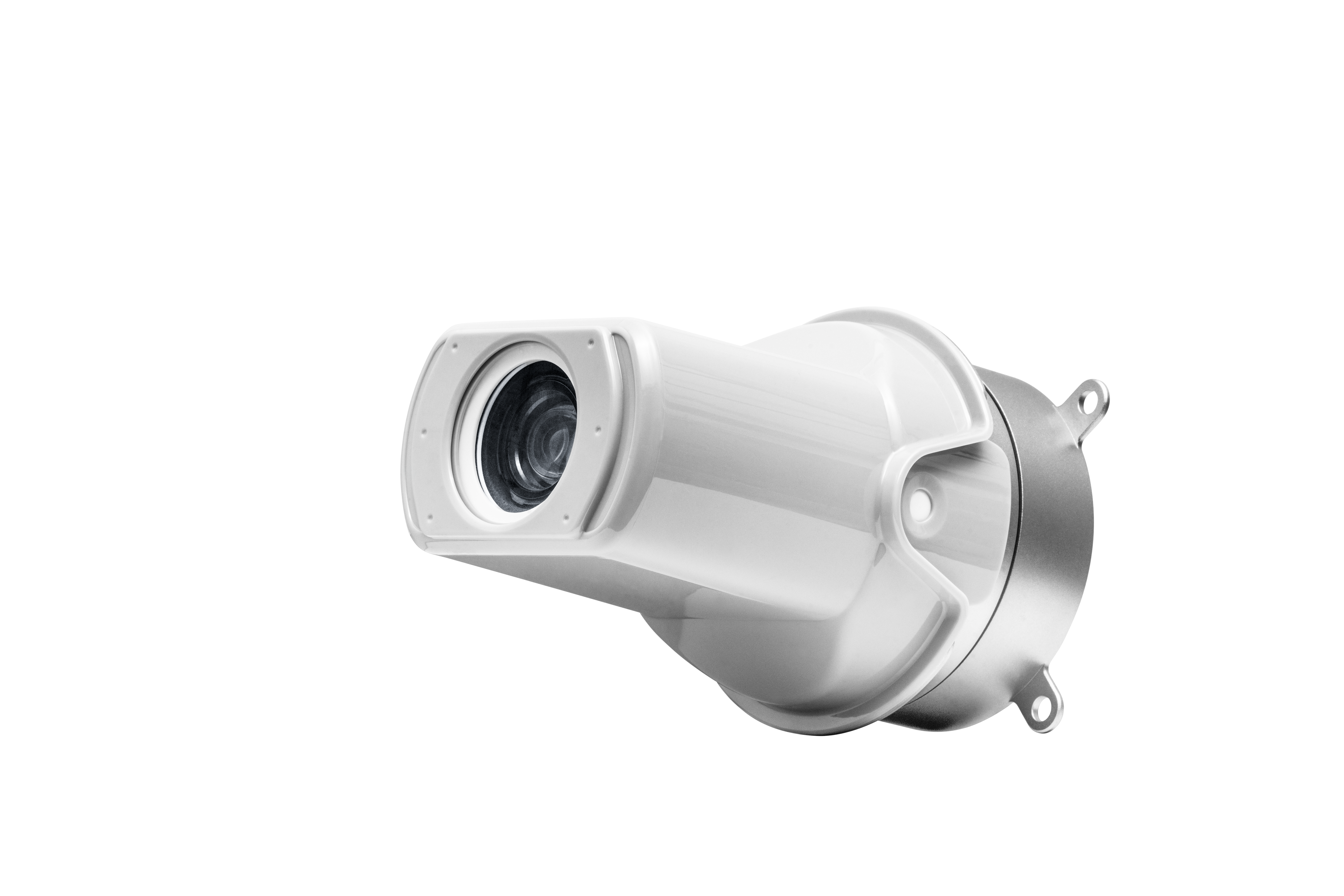

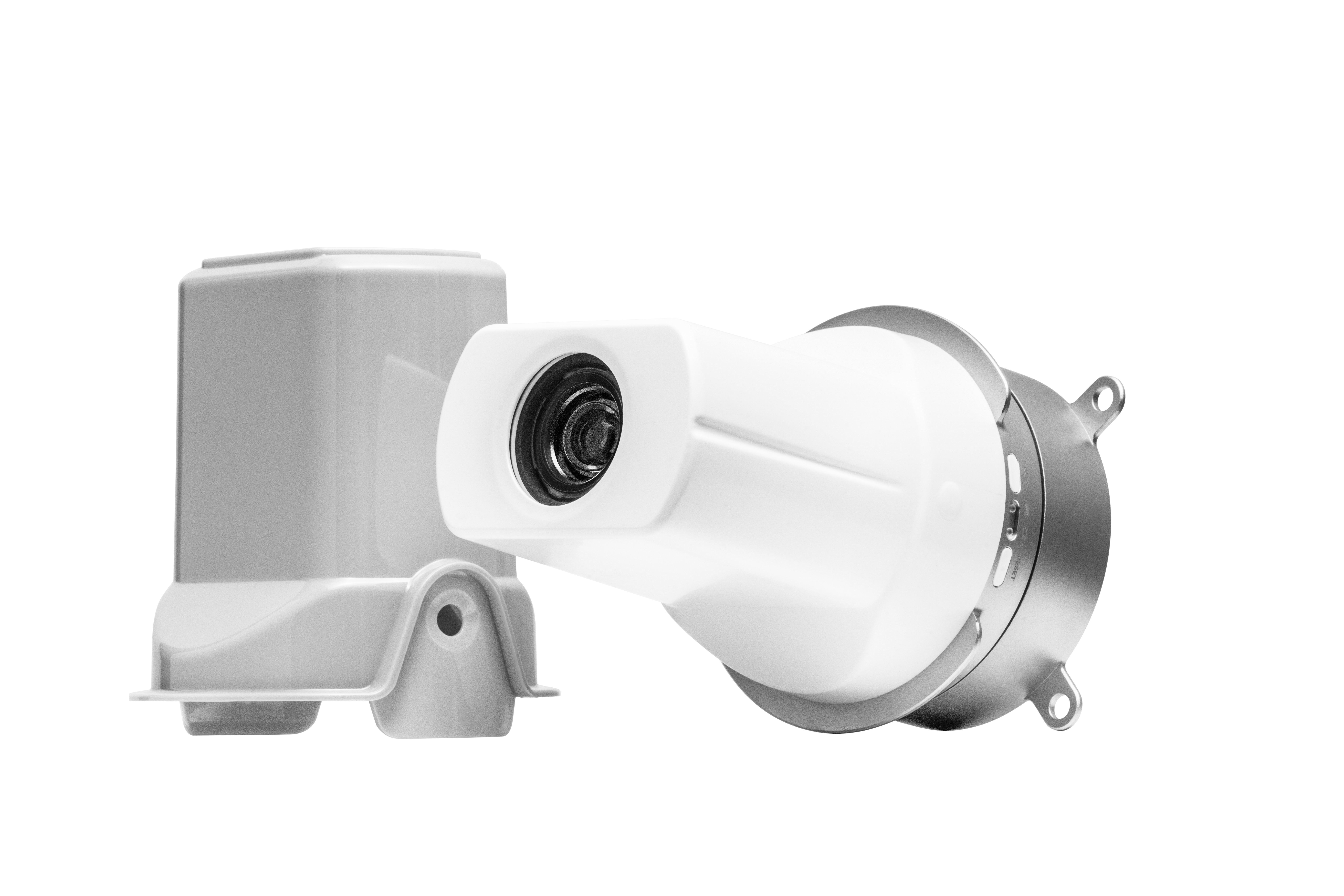

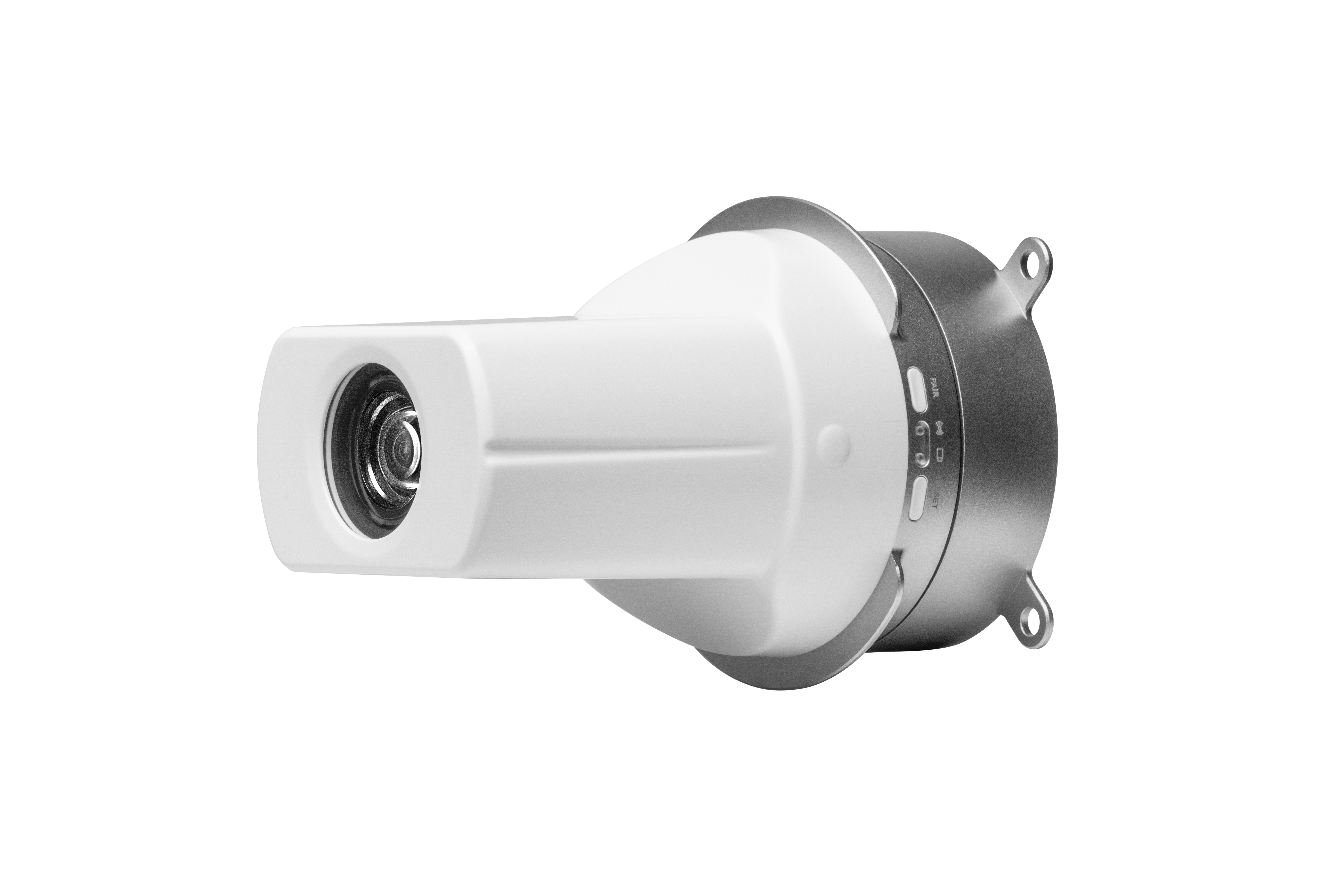

Wireless 4K camera solution for surgical lights
Wireless 4K camera solution for surgical lights
Purpose-built for surgical light manufacturers who need wireless 4K without compromise.
The SL11 is a wireless in-light 4K camera solution that delivers 4K 30fps video with under 1ms latency. Designed to create the most robust and highest quality wireless link for the operating room, it reduces installation time while increasing image quality, dependability, and flexibility. Ideal for OEM partners integrating wireless 4K video into new and existing surgical lights.
Sony FCB-8530 camera sensor delivering 3840×2160 at 30fps wirelessly - the same image quality as a wired solution, without the cables.
Amimon’s proven sub-millisecond wireless link - no perceptible delay between the surgical light camera and the display.
20× optical zoom plus 12× digital zoom gives surgeons detailed close-up visibility. Full 360° video rotation supported.
Full camera control (pan, tilt, zoom, focus) via VISCA protocol directly from the receiver unit - no separate control cable required.
Operates across the full unlicensed 5GHz spectrum (5.1-5.9GHz) with automatic best-channel selection for interference-free transmission.
Designed for integration into new and existing surgical lights. Transmitter uses internal antennas; module available without enclosure for embedded OEM builds.
Key performance parameters for system integration and evaluation. The full specification sheet is available in Downloads.
| Parameter | Value |
|---|---|
| Video | |
| Camera | Sony FCB-8530 |
| Video Format | 4K 30fps |
| Zoom | 20x Optical, 12x Digital |
| Camera Control | VISCA (through Host Connector) |
| Physical Attributes | |
| Size | 96mm × 162mm |
| Weight | 800g |
| Wireless Video Network | |
| Encryption | AES-256, RSA-1024 key exchange |
| Range | Up to 100 ft (30m) |
| Multicast | Can stream simultaneously to up to 4 receivers |
| Noise Rejection | Coexists with Wi-Fi and other 5GHz devices; up to 6 sets at the same location |
Product brochures, specification sheets, and documentation.
Our engineering team is available to support your integration, answer technical questions, and provide evaluation units.
