Wireless Video Link System
Connex Mini
A lightweight, zero-latency wireless HDMI video link built for smaller UAS, UGV, and industrial equipment.
A lightweight, zero-latency wireless HDMI video link built for smaller UAS, UGV, and industrial equipment.

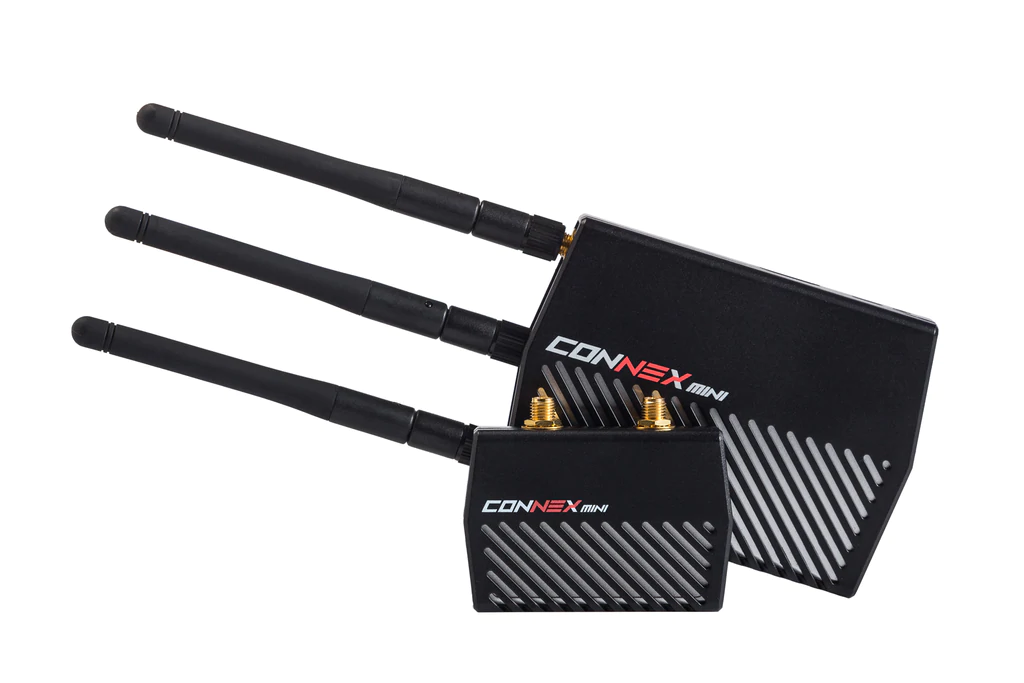

The Connex Mini Video Link system supports up to 1080p60 video resolution with zero-latency performance and a line-of-sight range of up to 1,600 ft. The transmitter weighs just 2.1 ounces, making it ideal for smaller UAS, UGV, and other industrial equipment requiring remote HDMI video vision. The receiver is suited to shorter-range applications with smaller mechanical area constraints. The Connex Mini package includes a transmitter and receiver unit, each of which can also be purchased as a standalone to build a custom application.
HDMI-in to HDMI-out latency of just 1 millisecond.
5GHz band (5.1-5.8GHz) using a 40MHz channel for reliable long-range transmission.
Full HD video resolution at up to 60fps.
At just 2.1 ounces, the transmitter is built for weight-constrained UAS and UGV platforms.
RSA-1024 key exchange with AES-128 encryption secures every transmitted frame.
Micro HDMI (Type D) input, HDMI (Type A) output, CANbus/Mavlink OSD input, and S.BUS gimbal control.
Key performance parameters for system integration and evaluation.
| Parameter | Value |
|---|---|
| Latency | Zero-latency (HDMI in to HDMI out: 1 mS) |
| Line of Sight Range | Up to 1,600 ft |
| Frequency Band | 5GHz (5.1-5.8GHz), 40MHz channel |
| Video Resolution | Up to 1080p60 |
| Multicast | Up to 4 receivers paired with a single transmitter |
| Encryption | AES-128, RSA-1024 key exchange |
| Input Voltage | 8-26 VDC (3S to 6S) |
| Video Interface | Micro HDMI (Type D) input & HDMI (Type A) output |
| OSD Input (to transmitter) | CANbus / Mavlink |
| Gimbal Control | S.BUS (input to receiver, output from transmitter) |
This Connex system is deployed across Rocoto’s industrial installations - crane cabins, manufacturing floors, and remote UAV/UGV operations. See the full Industrial Solutions overview.
Our engineering team is available to support your integration, answer technical questions, and provide evaluation units.
