Surgical Headmount Wireless Camera and Light
HM11x
Zero-latency 4K wireless video, from the surgeon's view
Zero-latency 4K wireless video, from the surgeon's view
True surgeon's point-of-view visualization, in 4K.

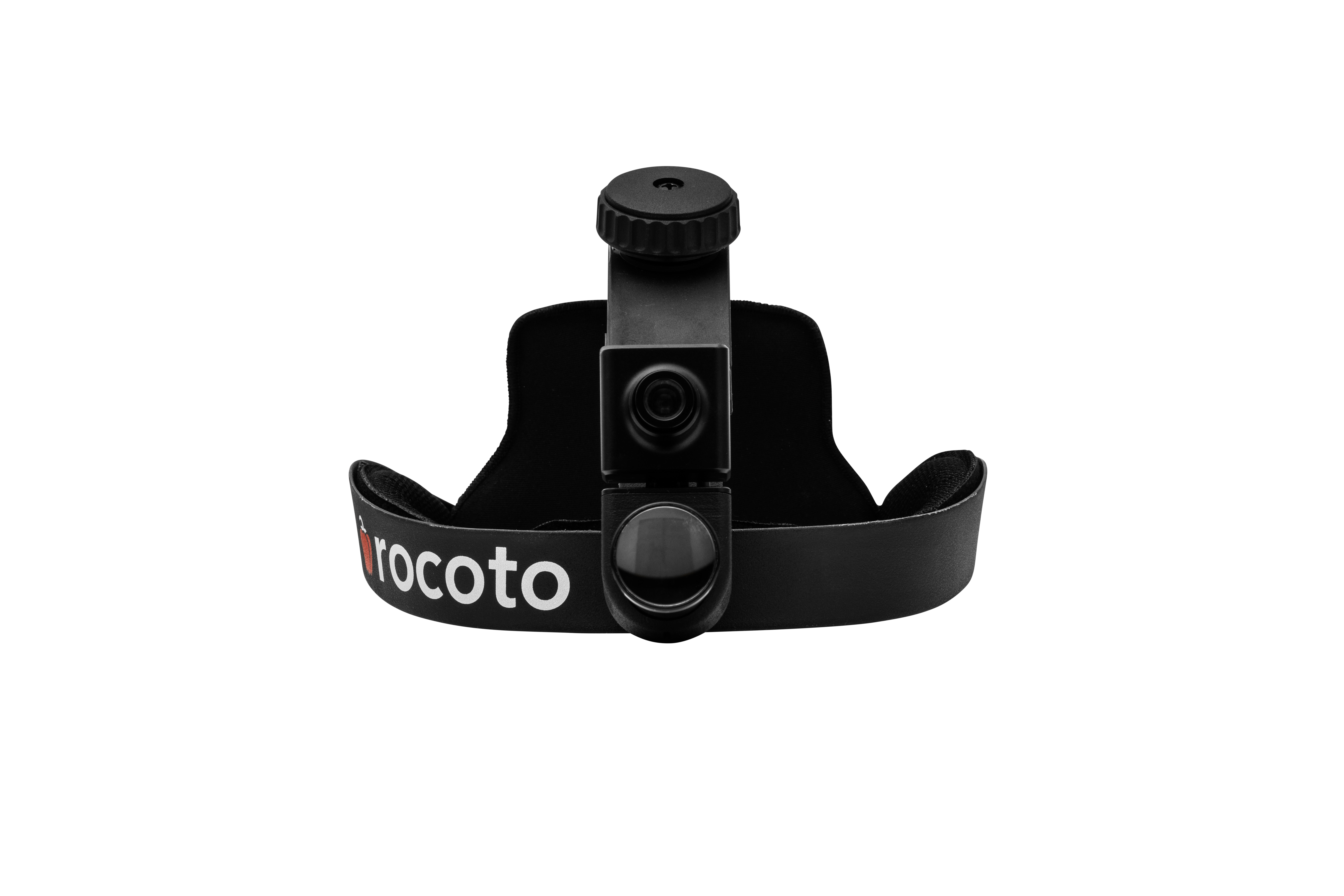

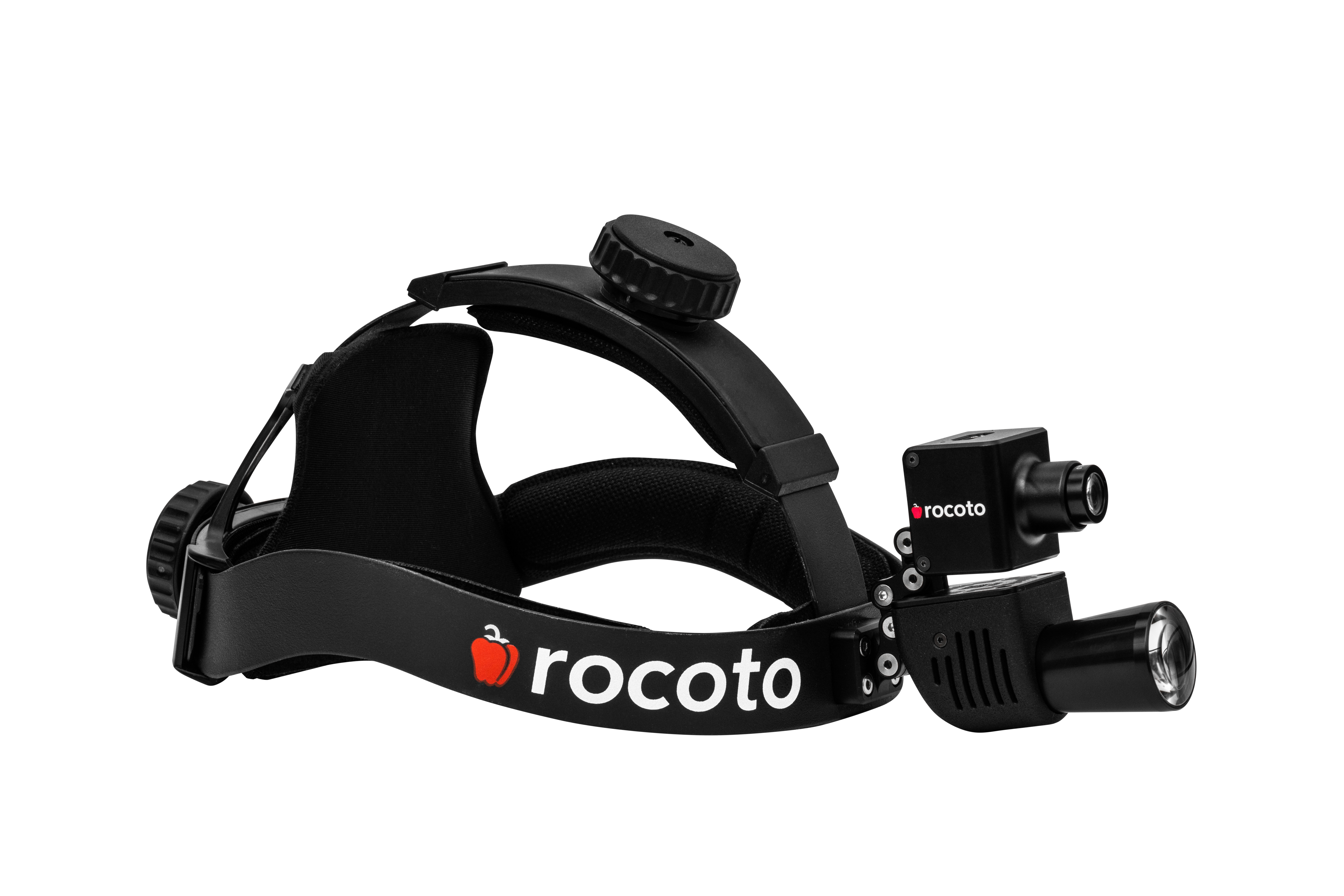

The HM11x is a head-mounted wireless camera and light designed for visualization of the procedure within the Operating Room and record it or share inside the OR. Combining cutting-edge wireless technology with high-definition imaging, the HM11x provides surgeons with flexibility in the Operating Room and offers surgeon's point-of-view visibility up to four monitors or recorders. It delivers zero-latency 4K wireless video.
A robust, ergonomic headband and transmitter built for comfort during long procedures. This one-of-a-kind system enhances both comfort and surgical workflow.
Fast and easy setup, no configuration required. A dedicated pairing button connects the transmitter to the receiver instantly.
Reliable in both line-of-sight & non-line-of-sight conditions. Supports up to 6 transmitters operating in the same room without interference.
With wireless connectivity, the HM11x improves mobility, reduces setup time, and minimizes the risk of tripping hazards, ultimately ensuring a safer and more efficient surgical environment. Its versatile design makes it ideal for various procedures, from general surgery to specialized disciplines.
100K lux at 40 cm working distance. Beam size of 12 cm at that distance, with a 5700K color temperature for natural, true-to-life visualization.
Stream to up to 4 receivers simultaneously. Fully compatible with the MD52x receiver and CMU for flexible facility integration.
Key performance parameters for system integration and evaluation. The full specification sheet is available in Downloads.
| Parameter | Value |
|---|---|
| Video & Camera | |
| Image Sensor | Sony IMX 678, CMOS Active |
| Video Format | 3840 × 2160 (4Kp30) |
| Lens | 12 (default) or 16 mm |
| Lamp | |
| Light | Powerful LED light – maximum of 100K Lux at 40cm working distance |
| Color Temperature | 5700K |

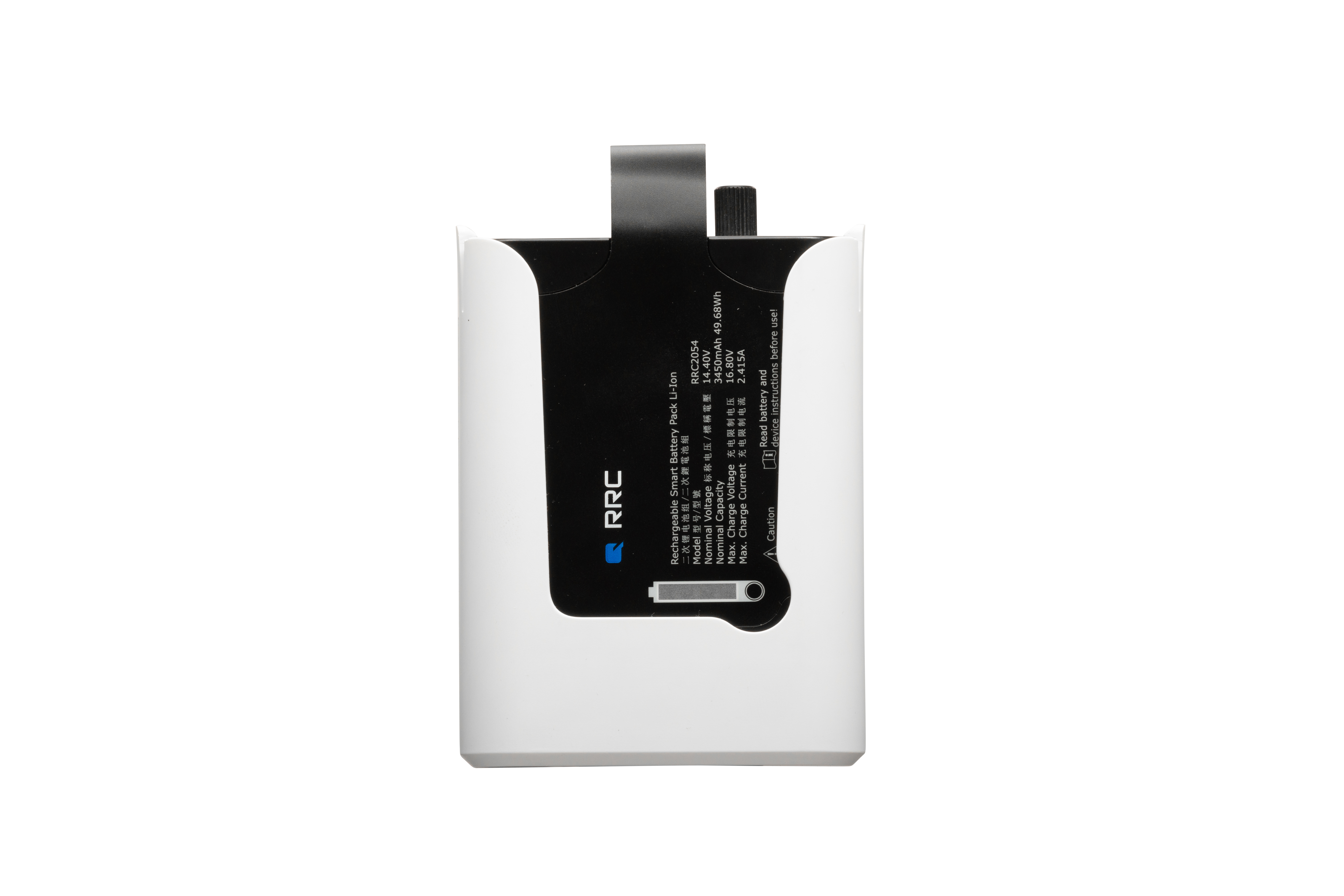

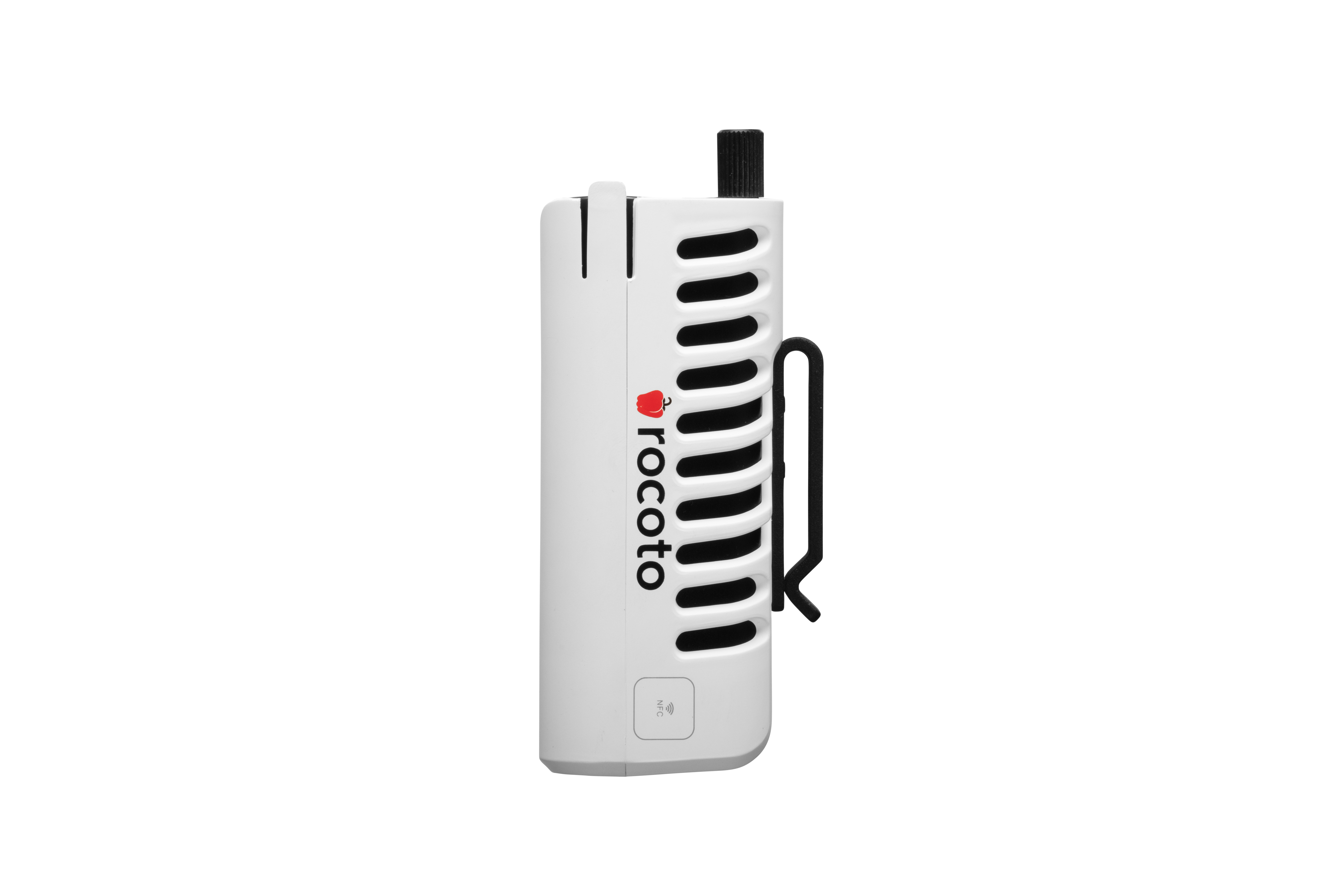

| Transmitter Interfaces | |
| Intensity Control Knob | Off, On, 1-100K LUX |
| BLE & NFC | Control and configuration |
| LED Indication | Video, network |
| Wireless Video Network | |
| Encryption | AES-256, RSA-1024 key exchange |
| Bandwidth | 40MHz |
| Range | Up to 100 ft (30m) |
| Multicast | Transmitter can stream simultaneously to up to 4 receivers |
| Noise Rejection | Coexists with Wi-Fi and other devices on the 5GHz band; up to 6 sets at the same location |
Product brochures, specification sheets, and documentation.
Our engineering team is available to support your integration, answer technical questions, and provide evaluation units.
